EXCEL ENCLOSURES, Manufacturer, Supplier Of Control Panel, Control Panel Enclosures, Modular Floor Standing Extensible Enclosures Cabinets, ( For Drive Panels, PLC Panels, SPM Panels, Automation Panels, Server Rocks, Networking Communication Panels, MCC / PCC Panels, UPS / Stabilizers Panels, APFC Panels, Control Panel Enclosures, Analyzer Systems ), Modular Floor Standing Enclosures - Cabinets
Insulated Enclosures
Insulated Enclosures

Modular Floor Standing Enclosures (MFS)
Modular Floor Standing Enclosures (MFS)
Modular Floor Standing Enclosures (MFS)

Modular Floor Standing Enclosures (MFS)



Features
  • Welded body with sides, top and bottom closed in 1.5/12.00 thk folded CRCA sheet.
  • Front single door / split doors / partial doors in 2.00 thk CRCA sheet. With support frame, sheet metal special hinges, cam locks and handles.
  • Polyethylene gasket on door and polyurethane foam on gland plate, both are fire retardant.

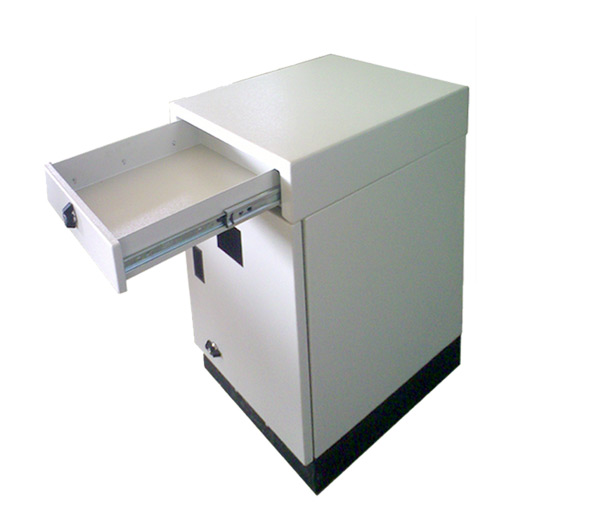

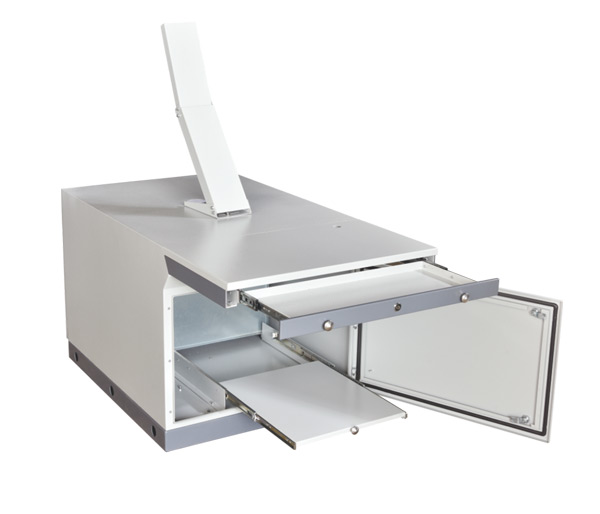

  • Horizontal sliding tray is provided for CPU for easy access.

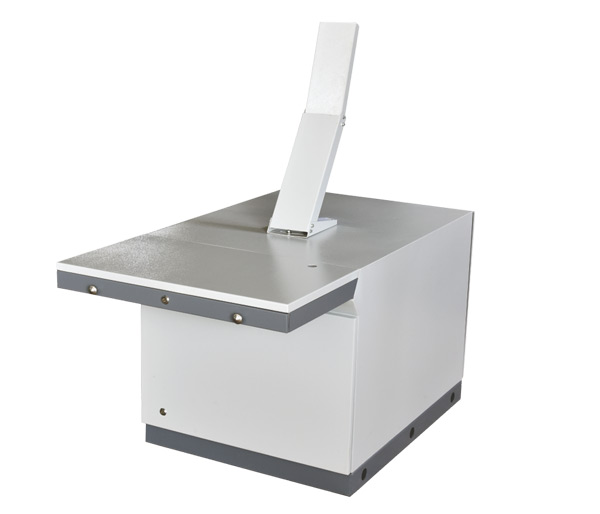

  • Sliding keyboard is provided for comfortable working when it is not in use.
  • Mounting plate at side for spice buster, MCB, terminals mounting.
  • Gland plate at bottom in 2.00 thk CRCA.
  • Rear access is optional.
  • Anti vibration pads can be provided.
  • Sturdy base is provided with side cable entry.

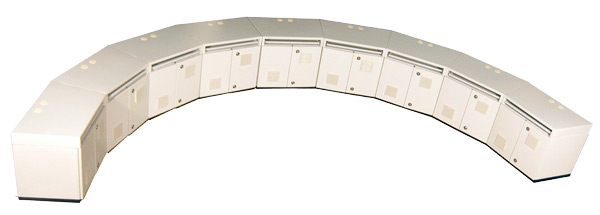

  • Can be manufactured in trapezoidal shape to form a circle.


Standard sizes :
Width Depth Height Base
600mm or 800mm in pitch of 100mm 600mm Typically 750mm  can be changed  Typically 75mm

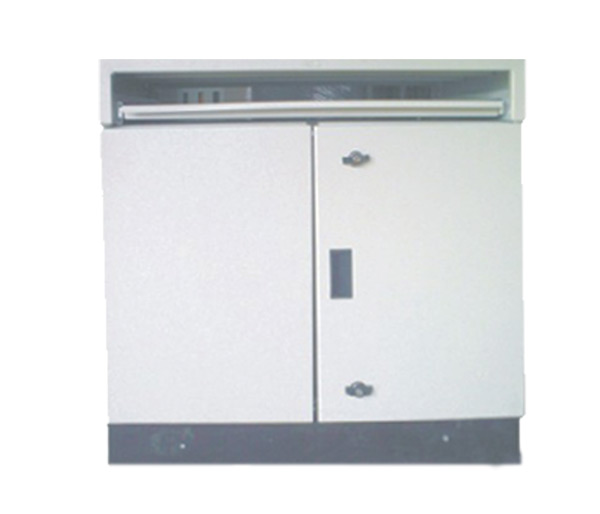

Up to 800mm width single door, above sizes will have split door.
