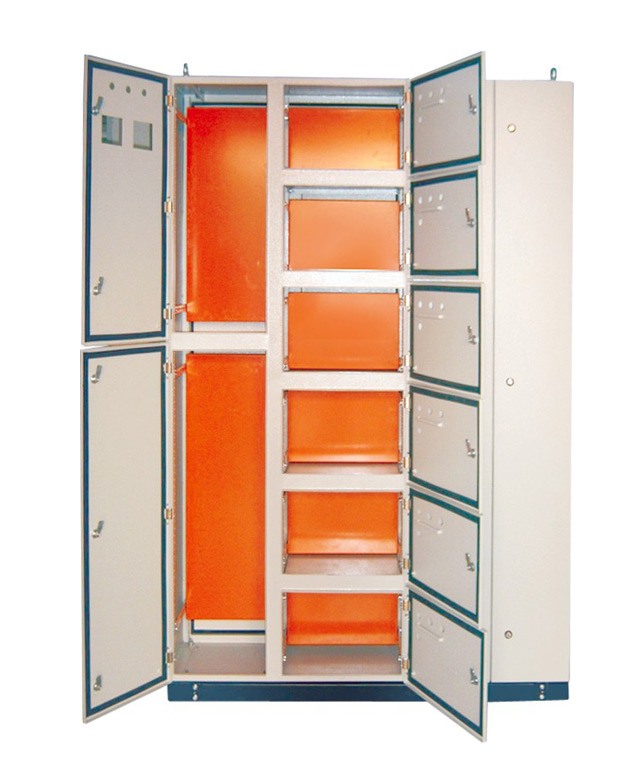

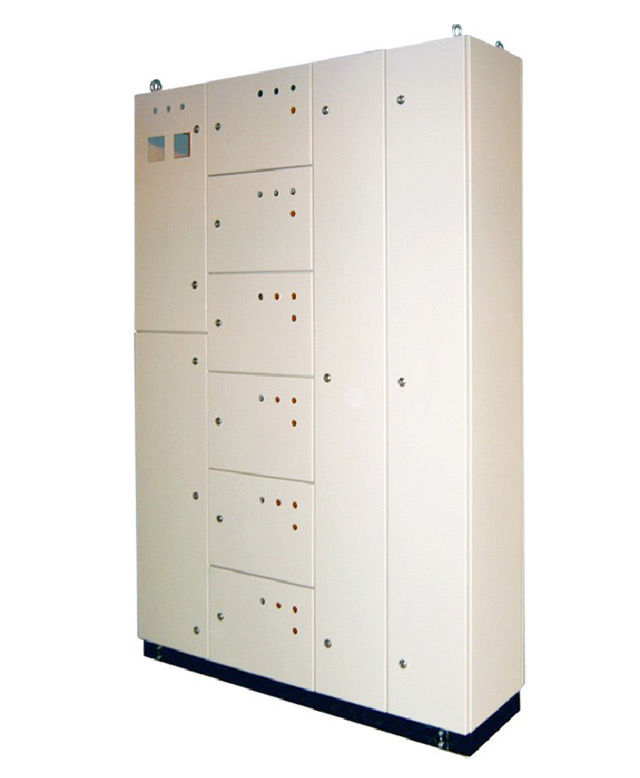

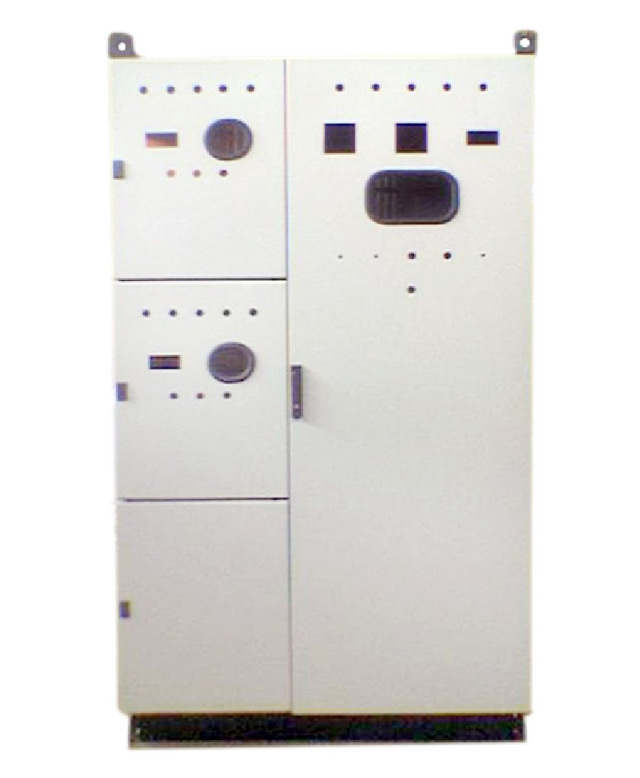

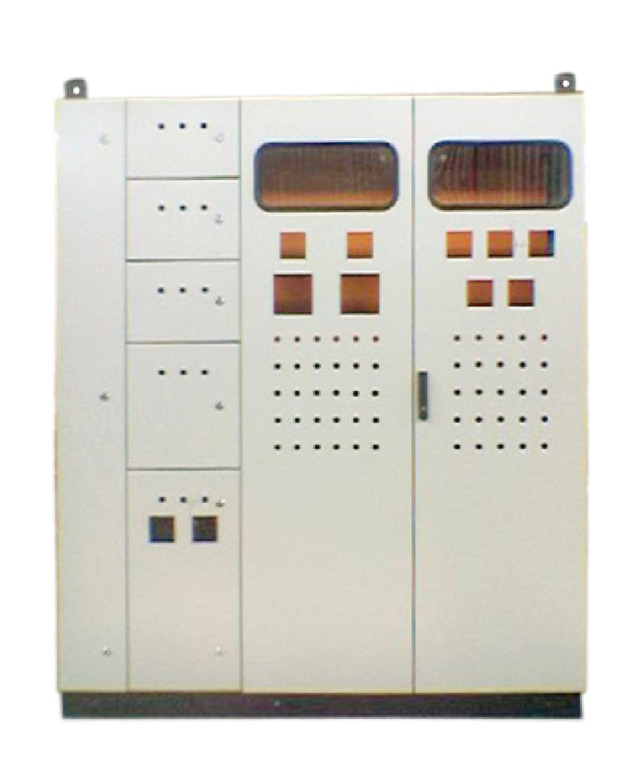

Modular MCC / PCC Enclosures
Modular MCC / PCC Enclosures
Modular MCC / PCC Enclosures

Modular MCC / PCC Enclosures

  • The best IP protection (IP-54).
  • Best strength for 1200 depth also.
  • Modularity for internal assembly. Doesn't require more pre-engineering.
  • Each & every compartment is a separate box and hence we can alter complete elevation at any stage.
  • Punched holes having pitch of 12.5mm.
  • Universal mounting of doors and covers so that they can be interchanged or reverted,
  • Detachable all the doors and covers facilitates faster interior assembly.
  • Stronger support channels (plated or powder coated) screwed on the doors.
  • Fire retardant & chemical resistant Polyurethane foamed D type gaskets (workability at 1000C temperature) on doors and covers for better IP protection.
  • Easy and modular busbar mounting is provided in bus chambers.
  • Depth and height adjustable mounting of component plate and horizontal / vertical partitions.
  • Clamped and folded gland plates in parts for easy removing and fitting. Gland holes not necessary to decide earlier, can be drilled at site also.
  • Angular mounting of terminals provides spacious access.
  • Sheet metal folded base looks attractive with ease in grouting (Grouting holes visible).ISMC base also can be provided.

Standard sizes :
Width Depth Height Base
Modules of 300mm,
400mm, 500mm, 600mm 700mm & 800mm
450mm to 1000mm
( pitch of 50mm)
(pitch of 100mm)
75mm, 100mm
150mm, 200mm
