EXCEL ENCLOSURES

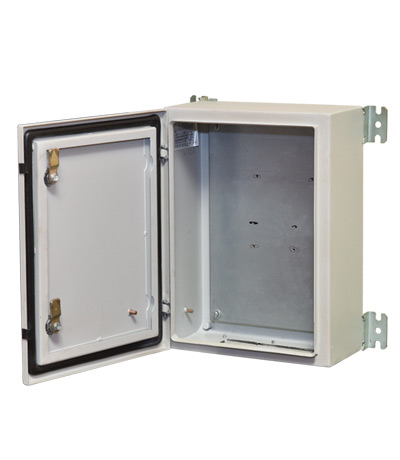

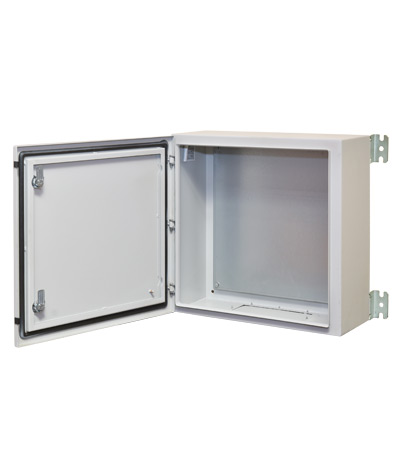

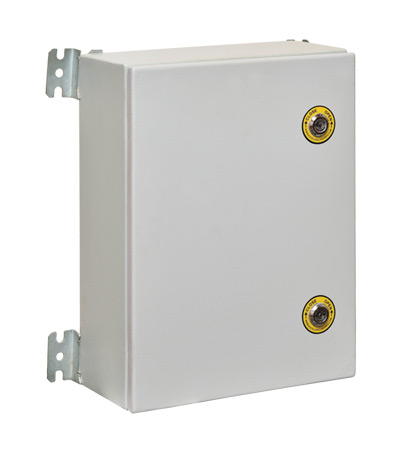

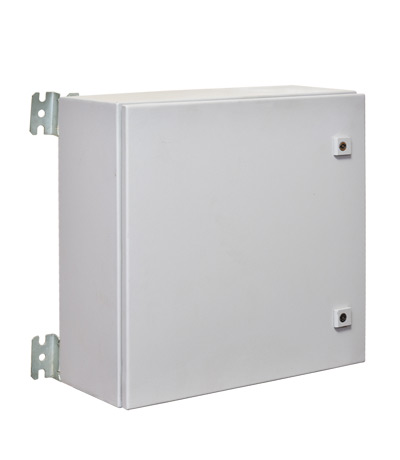

Wall - Machine Mounting Enclosures
Wall - Machine Mounting Enclosures
Wall - Machine Mounting Enclosures

Modular Floor Standing Extensible Enclosures
Modular Floor Standing Extensible Enclosures



Features
  • This is suitable for smaller size enclosures.
  • Better IP Protection ( Up to IP67 )


Parts of Enclosure
  • Welded Body : It's body is closed from sides, rear,top & bottom in 1.5 / 2.00 thk folded CRCA sheet.
  • Base : it is optional
  • Front single /split / partial doors : Made in 2.00 thk CRCA sheet with support frame, sheet metal special hinge, cam locks.
  • Gland plate : : At top or bottom in 2.00 thk CRCA.
  • Component mounting plate ('C' Plate) : 2.00/3.00 thk as per requirement size is (W-55) x (H-55) mounting on welded bushes at rearmost position.
  • Wall mounting bracket : 4 no's wall mounting bracket (in 3.00 thk) per enclosures.
  • 19 Racks : Din Standard 19" equipment mounting arrangement is possible.
  • 19"Swing frame : su itable for 19" mounting in width and height as per requirement.

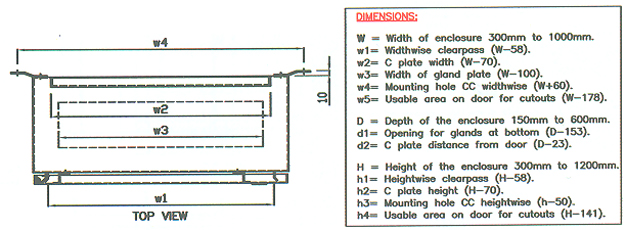

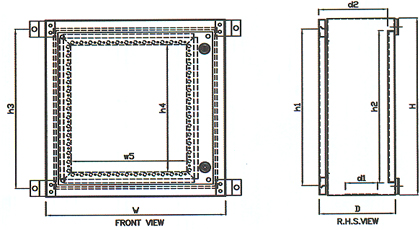

Standard sizes :
Width Depth Height Base
300mm-800mm
(in pith of 100mm)
100mm-400mm
(in pith of 50mm)
300mm-1200mm
(in pith of 100mm)
As per requirement

There is access from front only as sides and top are closed.
