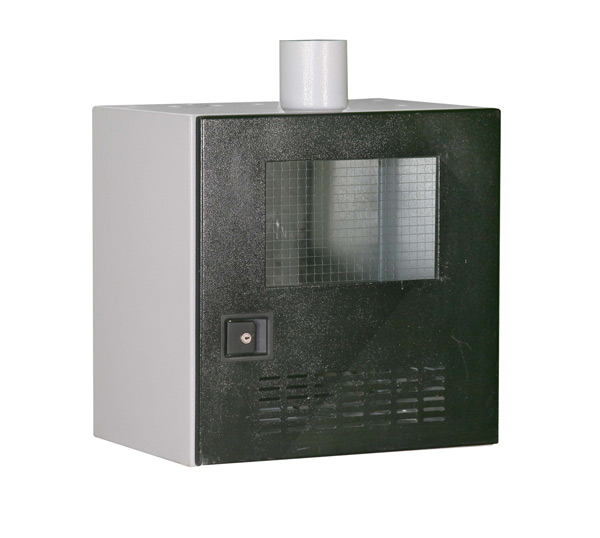

Gas Cabinets
Gas Cabinets
Gas Cabinets



Features
  • The best IP protection (IP-55).
  • Better strength.
  • Modularity for internal assembly. Doesn't require more pre-engineering.
  • Width and depth adjustable cylinder mounting channels on a 25mm pitch.

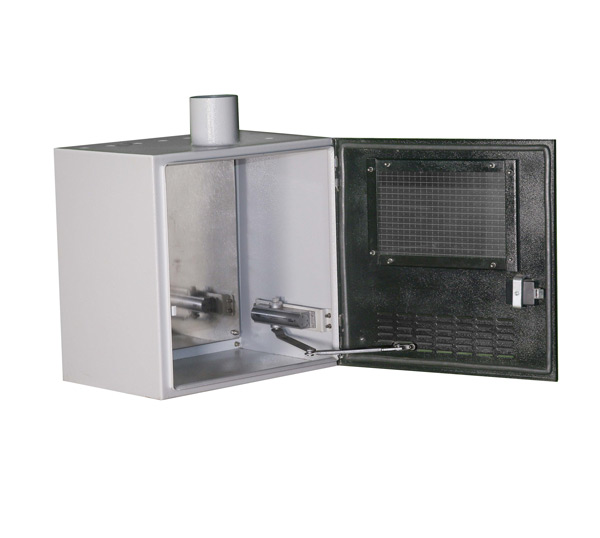

  • Doors with hydraulic power closers keeps door normally closed with push to open single point lock.
  • Wire reinforced toughened glass fitted on doors with support channels (plated or powder coated) screwed on the doors.
  • Fire retardant & chemical resistant Polyurethane foamed D type gaskets (workability at 100°C temperature) on doors.
  • Air suction duct at top for disposal of gas leakages.
  • Heavy 5.00mm thick unfolded plate used as bottom for more strength and easy cylinder placing inside cabinet.


Standard sizes :
Width Depth Height Base
400mm-1500mm
( pith of 100mm
400mm-600mm
(pith of 50mm)
500mm-2200mm
(pith of 100mm)
75mm-100mm
150mm, 200mm

Up to 600mm width single door, above sizes will have split door.
