EXCEL ENCLOSURES

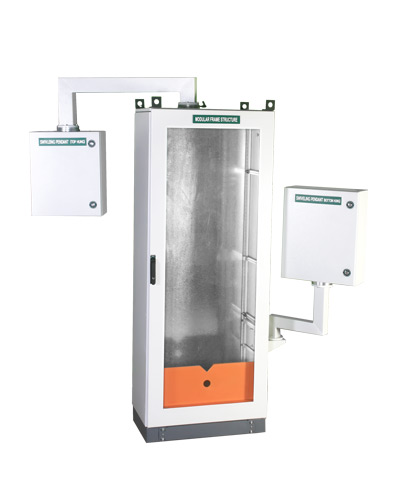

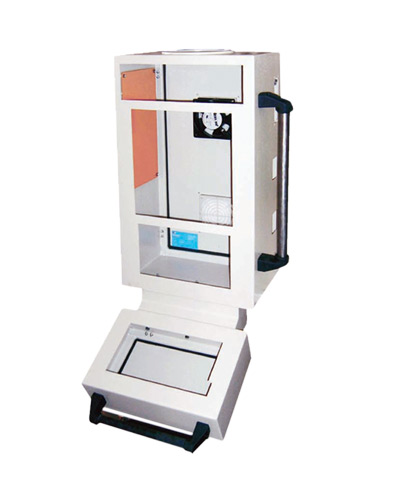

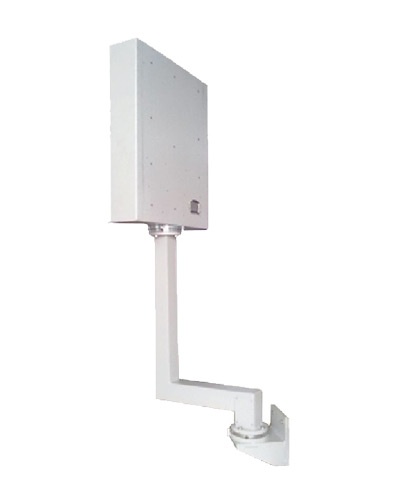

Operator Pendants
Operator Pendants
Operator Pendants

Operator Pendants
Operator Pendants



Features
  • Welded body with sides, top and bottom closed in 1.5/2.00 thk folded CRCA sheet.
  • Very strong and sturdy arm manufactured in 65x65 square tubes in 3.00 thick sheet.
  • Front single door in 2.00 thk CRCA sheet with, 'D' type foam gasket.
  • Polyethylene gasket on door and polyurethane foam on gland plate, both are fire retardant.
  • Swiveling thrust bearing with inner diameter 58mm for cable passing.
  • As side walls are not removable, inter panel separator is not required here.
  • These types of enclosures are not suitable to join together, however if needed we can join them.


Standard sizes :
Width Depth Height
300mm-800mm
(in pith of 100mm)
200mm-600mm
(in pith of 50mm)
300mm-1200mm
(in pith of 100mm)


There is access from front only as sides and top are closed.
